Chapter 03Fit · Know-how

Lit length, lead length and sets end to end: reading the box and the tag

Quick answer

A light set's total length includes bare cord at each end: the lead to the plug and a short tail. The lit length is only the part with bulbs, and that is the number to plan with. One 50-light mini set lists 16.25 ft lit and 17.5 ft total, with a 12 in lead and a 3 in tail. The most sets you can join end to end is printed by the maker on the tag or the box, either as a count or as a wattage cap. Plan with that number.

Source: Christmas Central 50-light LED mini set listing, checked October 9, 2026; 1000Bulbs holiday lighting guide, checked October 9, 2026; Christmas Light Emporium planning guide, checked October 9, 2026.

A string of lit white lights and a cardboard box on a kitchen table
Example189 ft, 10 sets48 ft of eaves, a gable, 4 windows

Three lengths on one box

Christmas Central's listing for a 50-light LED mini set gives a lighted length of 16.25 ft and a total length of 17.5 ft, a 12 in lead cord and a 3 in tail cord. Add them up: 16.25 ft of bulbs, 1 ft of lead and a quarter foot of tail make the 17.5 ft.

Source: Christmas Central 50-light LED mini set listing, checked October 9, 2026.

  • Lit length (or lighted length): from the first bulb to the last. Plan every run with this number.
  • Lead: bare cord between the plug and the first bulb. It reaches toward the cord or the set before.
  • Tail or end cord: bare cord after the last bulb, ending in the socket the next set plugs into.
  • Total length: all three together. It's the bigger of the two numbers, so check which one a listing means.
One 50-light mini set, as its listing gives it lead 12 in tail 3 in lit length 16.25 ft: 50 bulbs, 4 in apart (plan with this) total length 17.5 ft = 1 ft lead + 16.25 ft lit + 0.25 ft tail Fewer than 50 bulbs drawn, for room. Lengths from the retailer listing, checked October 9, 2026.
Fig. 1One listing, three lengths: 12 in of lead, 16.25 ft of bulbs and a 3 in tail make the 17.5 ft total.

Planning with the total length leaves you short

Cover 82.3 ft of roofline with those minis. At 17.5 ft a set, 5 sets look like enough. At the real 16.25 ft lit length, 5 sets light 81.25 ft, a foot short, so you need 6.

Source: Christmas Central 50-light LED mini set listing, checked October 9, 2026.

When the box gives only a total

Some listings skip the lit length. Christmas Central's 100-light LED C7 set gives a total length of 41 ft, a 4 in lead and a 6 in end cord. Subtract the two cords: 41 ft minus 10 in is about 40.2 ft of lit length.

Source: Christmas Central 100-light LED C7 set listing, checked October 9, 2026.

  1. Look for the cord lengths

    Check the side panel, the spec sheet or the product page for lead and tail lengths, and subtract them from the total.

  2. Or count from the spacing

    Bulbs minus one, times the spacing, is close to the lit length. 50 bulbs at 4 in is 49 gaps of 4 in, 196 in or about 16.3 ft, within an inch of the listed 16.25 ft.

  3. Or measure one set

    Lay one set straight on the floor and tape from the first bulb to the last. Write the lit length on the box for next year.

Source: Christmas Central 50-light LED mini set listing, checked October 9, 2026.

Sets end to end: read the tag

1000Bulbs says to check the UL tag for the maximum number of connections before plugging sets in end to end, and that it is usually 3. The same guide says no more than two sets in its troubleshooting list. Two different numbers on one page are a good reason to trust the tag on your own set over any rule of thumb. The Christmas Light Emporium agrees: follow the manufacturer's tag, and expect LED sets to allow more than incandescent ones.

Source: 1000Bulbs holiday lighting guide, checked October 9, 2026; Christmas Light Emporium planning guide, checked October 9, 2026.

  • 1000Bulbs puts the UL tag at one end of the set and notes it says Indoor/Outdoor or Indoor Use Only.
  • Some boxes give a count, such as connect up to 3 sets.
  • Some give a wattage cap instead. Both Christmas Central listings say not to exceed 210 watts end to end.

Source: 1000Bulbs holiday lighting guide, checked October 9, 2026; Christmas Central 50-light LED mini set listing, checked October 9, 2026; Christmas Central 100-light LED C7 set listing, checked October 9, 2026.

Turning a wattage cap into a set count

Divide the cap by the watts of one set and round down. The 4.8 W mini set: 210 ÷ 4.8 is 43.75, so 43 sets. The 9.6 W C7 set: 210 ÷ 9.6 is 21.875, so 21 sets. That is the maker's limit for joining those sets. Where the run plugs in is a separate question; read the label on each outdoor cord.

Source: Christmas Central 50-light LED mini set listing, checked October 9, 2026; Christmas Central 100-light LED C7 set listing, checked October 9, 2026.

From the tag to plug points

Each run needs a starting point for every group of sets the tag allows. Divide the sets in the run by the tag number and round up. In the tool's example, 82.3 ft of roofline in 25 ft sets takes 4 sets; with a tag limit of 3, that is 2 starting points. Each window and door is its own run, so each starts at its own cord.

82.3 ft of roofline, 25 ft sets, tag says 3 end to end set 1set 2set 3set 4 plug 1 plug 2 3 sets joined end to end: the tag limit Sets: 82.3 ÷ 25 = 3.3, round up to 4. Plug points: 4 ÷ 3 = 1.3, round up to 2. If the box gives a wattage cap instead, divide it by one set's watts and round down.
Fig. 2The tool's worked example: 82.3 ft of roofline in 25 ft sets is 4 sets. With a tag limit of 3, the run needs 2 starting points.
Let the tool do the arithmeticHoliday light length calculatorType the lit length from the box and the most sets end to end from the tag. The calculator has no default for the tag number and gives the sets and starting points per run.Example: 189 ft, 10 sets (48 ft of eaves, a gable, 4 windows)Open the tool

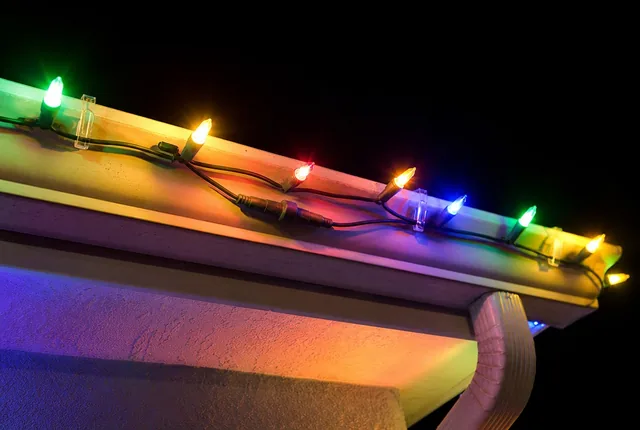

Colored lights clipped along a roof edge and gutter at night
Roofline sets in place. Each run was planned on the lit length and split where the tag limit said.

Checklist to print

With one box in hand:

  • Lit length found, or worked out from the total minus the cords
  • Lead and tail lengths noted
  • Bulb count and spacing noted
  • Tag found at one end of the set
  • Indoor/Outdoor wording checked on the tag
  • Most sets end to end read as a count or a wattage cap
  • Wattage cap turned into a set count, rounded down
  • Sets per run worked out on the lit length
  • Starting points per run worked out from the tag number
  • Lit length and tag number written on the box

Open the printable checklist

Read a light set before you buy the rest

Tips and tricks

  • Tip 01

    Buy one set first

    Buy a single set, read the box and the tag at home, then order the rest. The plan uses that set's numbers.

  • Tip 02

    Keep runs to one product

    Sets from different products can carry different tag limits and spacing. Join only sets of the same product, so one tag rule covers the whole run.

  • Tip 03

    Mark the box in marker

    Write the lit length and the tag number on the outside of the box. Next year you won't need to find the spec sheet again.

  • Tip 04

    Test each set before it goes up

    Plug each set in on the ground first. 1000Bulbs points out it is far easier to find a dead set before it is hung.

    Source: 1000Bulbs holiday lighting guide, checked October 9, 2026.

What we would do

Plan on lit length, split on the tag

Read the lit length on one box, or work it out from the total minus the cords, and plan every run with it. Read the most sets end to end on that set's tag and enter it in the calculator. Then write both numbers on the box, so next year you can plan without hunting for the spec sheet.

Source: 1000Bulbs holiday lighting guide, checked October 9, 2026.

Questions

What is the difference between lit length and total length?

Lit length runs from the first bulb to the last. Total length adds the bare lead at the plug end and the tail at the far end. One 50-light mini set lists 16.25 ft lit and 17.5 ft total.

Source: Christmas Central 50-light LED mini set listing, checked October 9, 2026.

What is the lead length on Christmas lights?

The bare cord between the plug and the first bulb. On the 50-light set above it is 12 in; on a 100-light C7 set from the same retailer it is 4 in.

Source: Christmas Central 50-light LED mini set listing, checked October 9, 2026; Christmas Central 100-light LED C7 set listing, checked October 9, 2026.

How many sets of Christmas lights can I connect end to end?

The number on that set's tag or box. 1000Bulbs says it is usually 3 on the sets it describes; some LED boxes give a wattage cap instead, such as 210 W.

Source: 1000Bulbs holiday lighting guide, checked October 9, 2026; Christmas Central 50-light LED mini set listing, checked October 9, 2026.

The box gives watts, not a number of sets. What do I do?

Divide the cap by the watts of one set and round down. 210 W over a 4.8 W set is 43 sets.

Source: Christmas Central 50-light LED mini set listing, checked October 9, 2026.

Can I join LED and incandescent sets?

Keep each run to one product, so one tag covers it. The Emporium's guide says to follow the manufacturer's tag, and tags differ between set types.

Source: Christmas Light Emporium planning guide, checked October 9, 2026.
